Tarpaulin Auto Twin Head Side Sealing Machine
Twin Head Side Sealing Machine

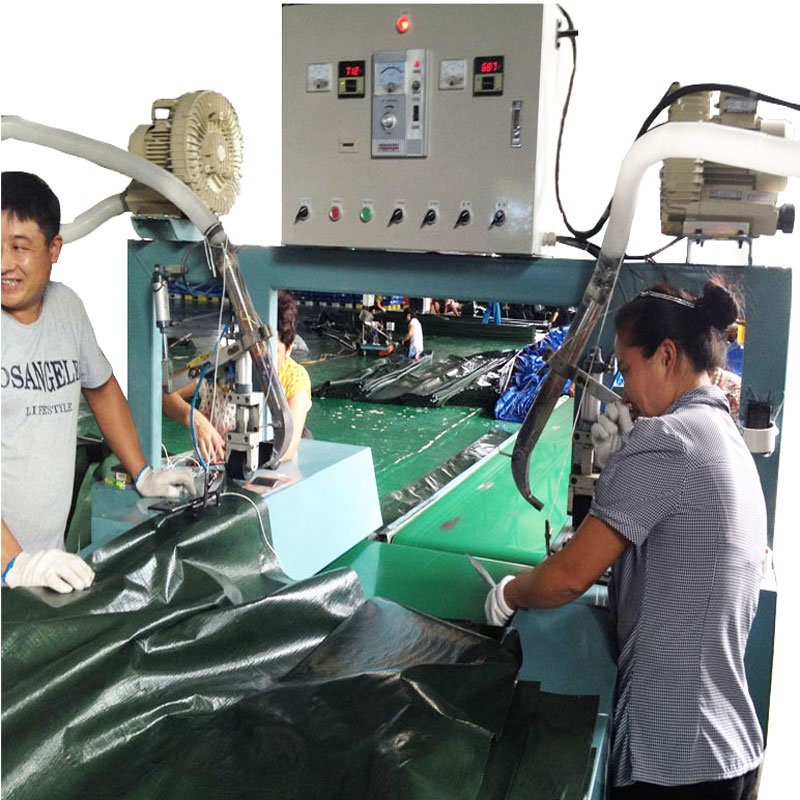

Tarpaulin Auto Twin Head Side Sealing Machine is custom built with dual hot air systems to simultaneously weld two outside edges and rope insertion.
This machine including three parts: Feeding platform, Main machine, conveyor parts.
It seals both the edges of the tarpaulin simultaneously by a press of a foot switch
The excess center fabric will move along on the conveyor as the sides get sealed, added feature it will have rope reinforcement arrangements, which is a necessity for the tarpaulin
Finishing of tarpaulin will be faster once it is center welded on the main welding line. Labor saving engaged on the sealing line that can by manually operated.
Capacity: 60 Mt/Min at optimum speed. (Depending on operating conditions)
Specifications:
| Item | unit | Data |
| Model number | LD-DH001 | |
| Welding Width | M | ≥1.2 |
| Welding speed | m/min | 0-25 |
| Width of seam | Mm | 30-40 |
| Nozzle quantity | Piece | 2 |
| Hot air temperature | ℃ | 450-800 |
| Heating power | Kw/stage | 8 |
| Main motor power | Kw | 2.2 |
| Compressed air | Mpa | 0.6-0.8 |
| Dimension | mm | 8500*1600*2200 |
Features:
- Dual heat systems for simultaneous edge welding
- Custom table for reduced material handling
- Complete with indexing for ability to handle multiple size screens
- Simple controls with touch screen interface for easy operation
It seals both the edges of the tarpaulin simultaneously by a press of a foot switch
You can check our Youtube video:
Longkou Leading Machinery Co., Ltd. is a professional company specialized in researching, developing and manufacturing tarpaulin equipment.
Our main products include Full Automated Finishing Line, PE/PVC hot air jointing machine, double side hemming machine, single head welder machine, tarpaulin eyelet machine, rewinder machine, logo printing machine etc . Our machine has been exported to Brazil, Chile, Turkey, Singapore, Vietnam, Myanmar, India etc.
We have professional technicians and experienced workers. Besides, we own the most advanced processing equipment such as CNC lathes, millers, horizontal boring machines, polishing machines and automatic welding machines.
Our company carries out human-oriented management and adheres to the guidelines that quality and clients’ interest come first. We will continuously accommodate to markets’ need and bring our advantage into full play to give the best service to all clients.
Finally, we sincerely welcome all clients from home and abroad to visit our company and we hope to establish long-term cooperation with you.
FAQ:
- Do you have it in stock?
If common products , we have in stock . Different customer have different demand , so we will produce machine according to customer demand .
- How long do you make the order product?
According to the order date
- Do you have operating manual book .
We have e operation manual
- Payment term:
40% before shipment, the rest should be payed before shipment.
Our patent designed Tarpaulin Auto Twin Head Side Sealing Machine can help our customer to make high quality and good looking tarpaulin products
